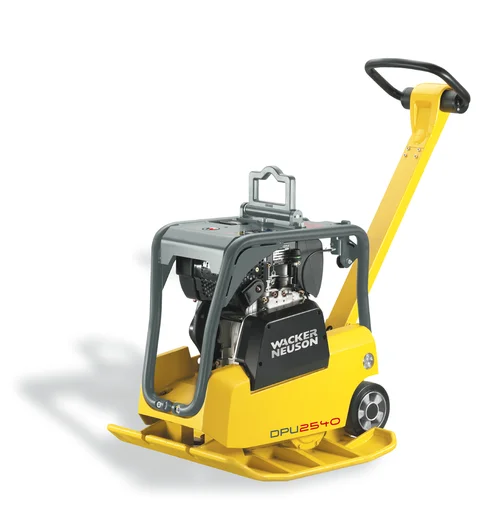

WN DPU2540HWN DPU2540H
£65.00 + VAT 1st day
£95.00 + VAT 7 day week
Deposit Amount: £100.00

Vibrating Plate – Reversible

£65.00 - £95.00 +VAT

Reversible vibratory plate with a diesel engine. The flexible all-rounder for soil, asphalt and paving stone compaction.

The compact vibratory plate with an excellent weight to performance ratio.

  • Uniquely mobile: The integrated, very sturdy transport gear allows for easy transport on the construction site.
  • Intuitive control handle: Control of the movement of direction as well as the speed in the same movement sequence – without changing grips, both hands stay on the control unit
  • Low hand-arm vibrations (HAV) (well below 2.5 m/s²)
  • Height adjustable center pole
  • Safety setting: Machine moves away from the operator if the control handle is released
  • Large-sized engine for a long service life
  • Water trap with inspection glass
  • The engine and tank are protected by a sturdy frame, which is also useful for a sturdy tie-down during transport.
  • All maintenance points are easily accessible, easily visible air cleaner capacity display
  • Thick, wear resistant base plate made from nodular cast iron
  • Very sturdy, free from play center pole lock, easy to actuate for a secure transport
  • Sturdy, fold-down lifting eye
Day based pricing : Vibrating Plate – Reversible
1 - 1 days : £65.00 Fixed
1 - 2 days : £85.00 Fixed
2 - 3 days : £95.00 Fixed
4 - 7 days : £95.00 Fixed

Price is excluding VAT & Insurance

Click and collect from one of our branches

Same day delivery available if ordered before 10am

Speak with a Product Specialist

Order Online Today

Select a date & time for your collection or delivery

Delivery/Pick Up Date & Time
Dropoff Date & Time
Quantity

Speak with a Product Specialist

Category:
  • Consumables with any plant hire product
  • Tool hire with any plant hire product
  • Free Delivery on any additional items

Product Specification

Specifications

OPERATING FLUIDS Metric
Exciter oil volume 0,60 l
Hydraulic fluid type Renolin MR 520
Hydraulic fluid volume 0,4 l
Exciter oil type 75W-90 API GL-4
ENGINE Metric
Inclined position max. 25,0 °
Engine operating mode four-stroke
Fuel consumption 0,40 L/Std
CO2 (NRSC) 986,79 g/KWh
Standard (Power max.) ISO 3046 IFN
Tank capacity 3,00 l
Nominal Engine speed null, 2.800 1/min
Oil filling max. 0,90 l
Effective power 3,1 kW, null
Battery capacity (nom. value) 0 Ah
Air cleaner dry air filter
Power rating max. 3,5 kW
Cooling air cooling
Exhaust-gas limit EU Stage V
Oil specification SAE 10W-40
Starter battery Voltage 0 V
Engine speed (Power max.) 3.600 1/min
Starter type Recoil starter
Oil filling min. 0,40 l
Engine type Diesel engine
Cylinder 1
Engine Manufacturer Hatz
Cylinder capacity 243 cm3
Kraftstofftyp Diesel EN 590
Oil volume incl. filter change 0,90 l
MECHANICAL – OUTPUT DETAILS Metric
Vibrations 5.400 1/min
Forward running 19,00 m/min
Transmission FKK
Gradeability 46,6 %
Centrifugal force 25,000 kN
Vibrations (Hz) 90 Hz
Area capacity 456 m2/h
HYDRAULIC Metric
Max. perm. hydraulic pressure 0,0 bar
Operating pressure hydraulics 0,0 bar
ELECTRICAL SYSTEM Metric
Remote Control Bat. Capacity 0 h
Coding options 0
Recommended Battery Typ 0
Charging Time 0,00 h
Remote Control Range 0 m
MECHANICAL DETAILS Metric
Lenght Drawbar in op. pos. 1.292 mm
Operating weight 160,0 kg
Ground clearance 736 – 846 mm
Height 1.097 mm
Width 400 mm
ENVIRONMENT DATA Metric
Operating temperature range -7 – 45 °C
Sound level LpA (Standard) EN 500-4
Sound power LWA, guaranteed 108,0 dB(A)
Storage temperature range -7 – 45 °C
HAV summation (average value) 2,7 m/s2
Uncertainty in measurement HAV 0,5 m/s2
HAV summation (Standard) EN ISO 20643, EN 500-4
Sound level LpA 86,0 dB(A)
Sound power LWA (Standard) EN 500-4
Sound power LWA, measured 106,0 dB(A)
Custom Attributes Metric
Model serie DPU
